Epps Products - Works Well Under Pressure

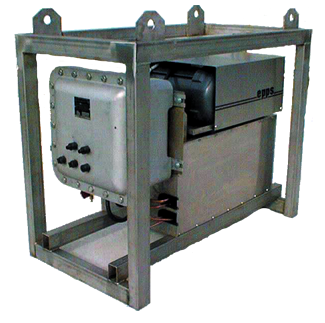

Explosion Proof

Hot Water • Electrically Heated

Designed for cleaning in hazardous locations
Class I Group C & D : Class II Groups F & G

UL-1203 & CAN/CSA 22.2
Heavy duty protective stainless steel frame for lasting endurance.
Low water supply cut-off.
Trigger gun controlled automatic On/Off with time delay.
Triplex pump is belt driven to ensure maxmum power transfer and minimal maintenance.
Stainless steel cabinet for maximum life.
Compact size
52"l x 28"w x 45"h
Innovative energy efficient on-demand heat exchanger maintains high heat even after extended use. Eliminates need for water storage tank.

Standard Features:

Downstream injection, applies chemical at low pressure.
50' steel wire braided pressure hose with couplers
Insulated trigger controlled gun with safety lock-off and single insulated lance.

Advantages:

No refueling
No ventilation
No hot exhaust
No open flame

No smoke
No odor
Sustainable heat rise 140°

Model	PSI	GPM	HP	kw	Outlet Temp °F	460V amp draw	Shipping Wt/Lbs
3500XP (PAINTED NO CAGE)	3000	4.0	7.5	66	180	92	1100
3500XPSS (S.S C/W CAGE)	3000	4.0	7.5	66	180	92	1100

Download our 3500XP Explosion Proof Series brochure in PDF format.
